Revit Model & After Effects Animation
TErminal sharm el sheikh
OM QASR is a mega project in Oman that consists of 24 buildings. The buildings vary in function, including administration, VIP accommodation, accommodation, a mosque, factories, silos, and storage facilities. The buildings showcase the unique architectural style of Oman, featuring beautiful arches. They also use insulation materials that help preserve heat.
22 / 03 / 2025
Programs used

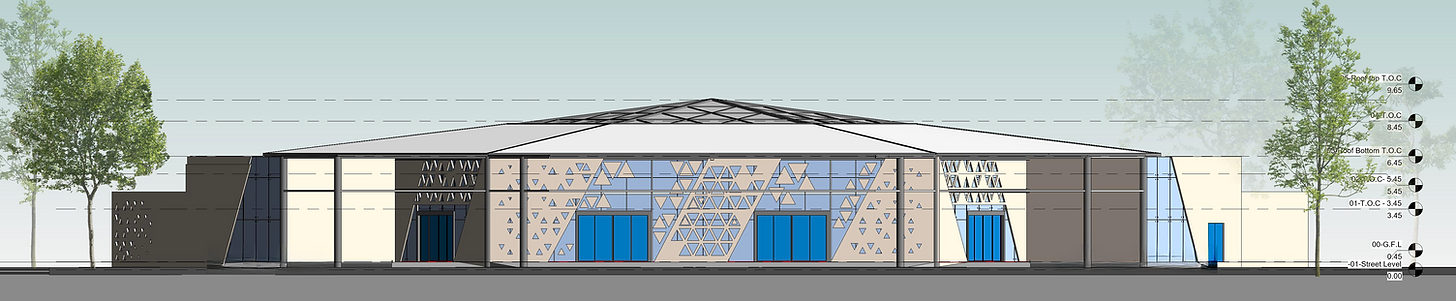

TERMINAL ELEVATION
TERMINAL 02 ELEVATION
TERMINAL 03 ELEVATION
TERMINAL 04 ELEVATION
Ground Floor Plan

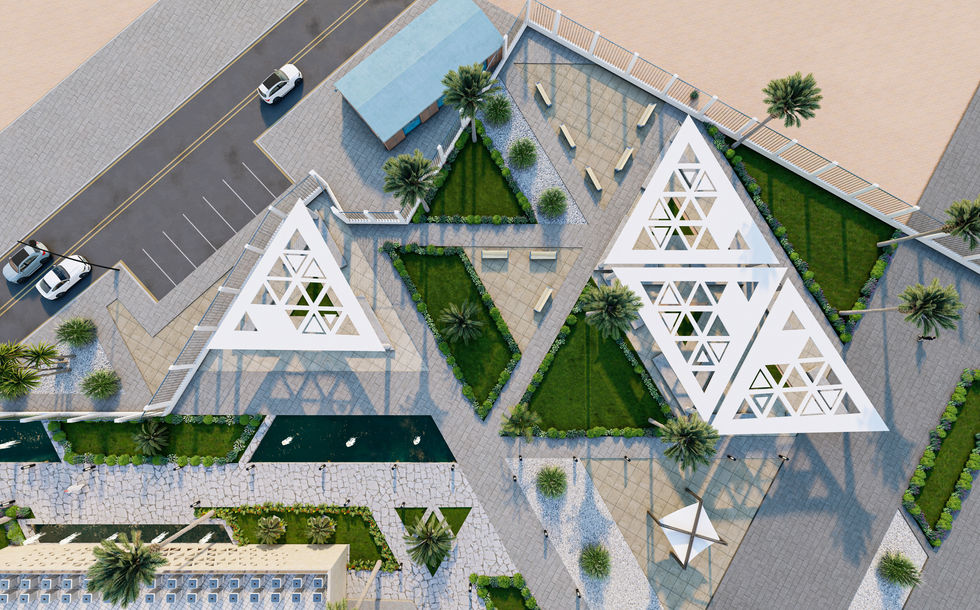

Softscape & Hardscape
DATE PALM
ROYAL PALM
ARECA
CYCAD
SPIDER PLANT
EUPHORBIA
DURANTA
RUBY PLANT
01
Steel Structure CAD Drawing
The steel shade has been drawn using CAD by the steel team according to steel requirments
Structural Analysis using SAP
the model has been imported from CAD to SAP to ensure that can withstand wind, live and dead loads.
02
03
Importing Model To Revit
Model has been exported from SAP in IFC format and imported to revit.
Combining Architecture and steel model
Importing Steel model as link with architecture model to render the model using Lumion and coordinate the model.
04
